Building a Spring Boot Application with RabbitMQ

In today’s interconnected world, building robust and scalable applications often requires integrating various components to enable communication and data exchange. RabbitMQ, a message broker that implements the Advanced Message Queuing Protocol (AMQP), is a popular choice for facilitating communication between different parts of a distributed system.

When combined with Spring Boot, a powerful framework for building Java-based applications, RabbitMQ can greatly enhance the flexibility and reliability of your software architecture. Asynchronous messaging plays a crucial role in enabling seamless interaction between components, and RabbitMQ stands out as a powerful message broker that facilitates this communication.

In this article, we’ll explore the process of building a Spring Boot application integrated with RabbitMQ, covering key concepts and practical implementation steps.

What Is RabbitMQ?

RabbitMQ is a message broker that implements the Advanced Message Queuing Protocol (AMQP). It acts as an intermediary between producers, which generate messages, and consumers, which process those messages asynchronously.

RabbitMQ is an open-source message broker designed for efficient message delivery in complex routing scenarios within distributed systems. It operates as a distributed cluster of nodes, providing high availability and fault tolerance by distributing queues across multiple nodes. In other words, RabbitMQ provides features such as message queuing, routing, and delivery confirmations, making it suitable for building reliable and scalable distributed systems.

RabbitMQ natively supports the Advanced Message Queuing Protocol (AMQP) 0.9.1 and extends its functionality through plugins to offer additional protocols such as AMQP 1.0, HTTP, STOMP, and MQTT. Moreover, RabbitMQ officially supports a wide range of programming languages including Elixir, Go, Java, JavaScript, .NET, PHP, Python, Ruby, Objective-C, Spring, and Swift. Additionally, it accommodates various development tools and client libraries through community-driven plugins.

Key Features of RabbitMQ:

• Message Queuing: RabbitMQ stores messages in queues until they are consumed by consumers. This ensures reliable message delivery and separates producers from consumers.
• Exchanges and Routing: RabbitMQ uses exchanges to receive messages from producers and route them to one or more queues based on predefined rules. Exchanges support different routing algorithms, such as direct, fanout, topic, and headers.
• Delivery Confirmations: RabbitMQ supports message acknowledgments, allowing consumers to confirm successful message processing. This ensures message reliability and prevents message loss.
• Reliable and Persistent Messages: RabbitMQ can persist messages to disk, ensuring that messages are not lost in case of a broker restart or failure.
• Scalability and High Availability: RabbitMQ supports clustering and high availability configurations, allowing it to scale horizontally and provide fault tolerance.

What Is RabbitMQ Used For?

1. Microservices Communication: In microservices architectures, RabbitMQ is typically used to provide communication between loosely coupled microservices. Each microservice can act as a producer or consumer, exchanging messages through RabbitMQ to perform various tasks.
2. Task Queues: RabbitMQ is often used to implement task queues, where producers enqueue tasks to be processed asynchronously by consumers. This approach helps distribute the workload evenly and improves system responsiveness.
3. Event-Driven Architecture: RabbitMQ is well-suited for implementing event-driven architectures, where events are produced and consumed by different components of the system. Events can represent user actions, system notifications, or any other significant event.
4. Integration with External Systems: RabbitMQ can be integrated with external systems and protocols, such as HTTP, AMQP, MQTT, and STOMP. This allows RabbitMQ to serve as a middle layer for messaging between different systems and technologies.
5. Real-Time Data Processing: RabbitMQ is used in real-time data processing applications to ingest, process, and analyze streaming data. Messages can be routed to appropriate processing nodes based on their content or destination, enabling efficient data processing pipelines.

RabbitMQ and Spring Boot App

1. Setting up RabbitMQ:

First, we need to set up a RabbitMQ server. We can either install RabbitMQ directly on our system or use Docker to deploy a local instance. Once RabbitMQ is up and running, you can access the management console at `http://localhost:15672` to configure exchanges, queues, and bindings.

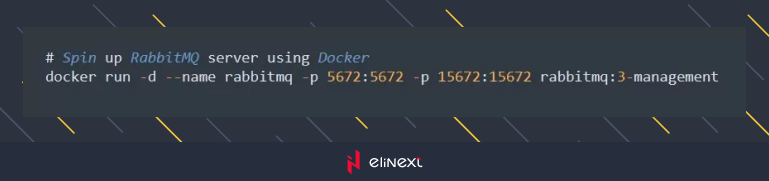

This command does the following:

• `docker run`: Runs a new container.
• `-d`: Docker detaches the container and executes it in the background.
• `–name rabbitmq`: Assigns the name “rabbitmq” to the container.
• `-p 5672:5672 -p 15672:15672`: Maps host ports to container ports. Port 5672 is the default port for AMQP, and port 15672 is used for the RabbitMQ management UI.
• `rabbitmq:3-management`: Specifies the RabbitMQ Docker image to use, with the management plugin and its version included.

2. Integrating RabbitMQ with Spring Boot:

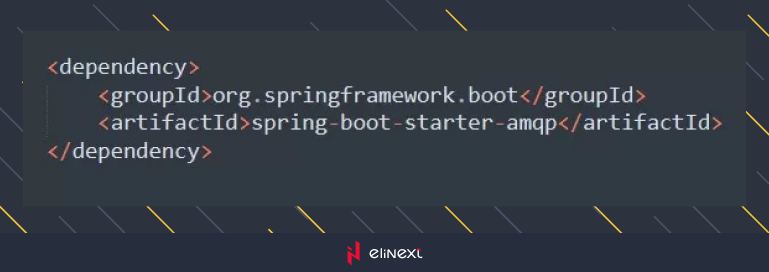

Spring Boot provides seamless integration with RabbitMQ through the Spring AMQP project. To integrate RabbitMQ into our Spring Boot application, we need to add the following dependency to our `pom.xml`:

3. Implementing of Message Producers:

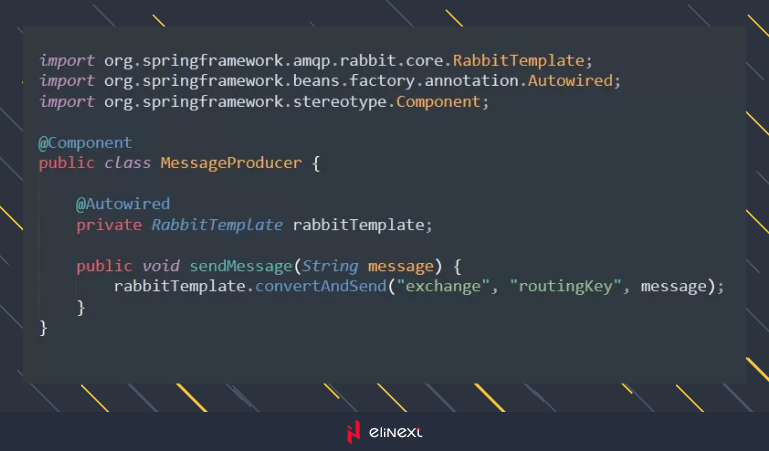

Message producers are responsible for sending messages to RabbitMQ exchanges. In Spring Boot, we can use the `RabbitTemplate` class for this:

Let’s explain the parameters used in the `convertAndSend` method of the `RabbitTemplate` class within the context of a message producer in Spring Boot:

• exchange: The exchange parameter specifies the name of the exchange to which the message will be sent. In RabbitMQ, exchanges receive messages from producers and route them to one or more queues based on predefined rules. Exchanges can be of different types, such as direct, fanout, topic, or headers, each determining how messages are routed to queues. When a message producer sends a message, it specifies the exchange to which the message should be routed.
• routingKey: The routingKey parameter is a string value used by RabbitMQ to determine which queue(s) the message should be routed to within the specified exchange. The routing key is a crucial component of the message routing process and plays a significant role in determining the message’s destination. Depending on the type of exchange used, the routing key may be used differently. For example, in a direct exchange, messages are routed to queues whose binding routing keys exactly match the message routing key. In contrast, in a topic exchange, messages are routed to queues based on pattern matching with the routing key.

By specifying the exchange and routing key parameters when sending a message using the convertAndSend method, message producers can direct messages to the appropriate exchange and specify how RabbitMQ should route them to the correct queues, ensuring efficient and targeted message delivery within the RabbitMQ system.

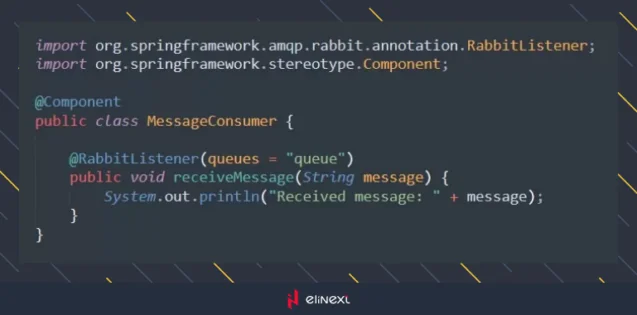

4. Implementation of Message Consumer:

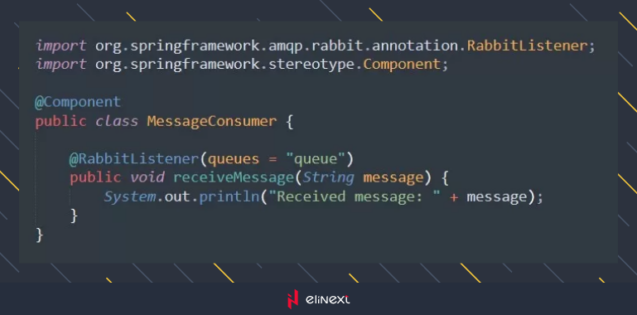

Message consumers listen for messages on RabbitMQ queues and process them accordingly. We can use the `@RabbitListener` annotation to create message-driven beans:

5. Launching the application:

After implementing the message producer and consumer, you can run the Spring Boot application and observe the exchange of messages between the two components.

RabbitMQ’s Architecture

Integrating RabbitMQ into a Spring Boot application opens up a world of possibilities for building scalable and resilient distributed systems. Let’s look at some key concepts.

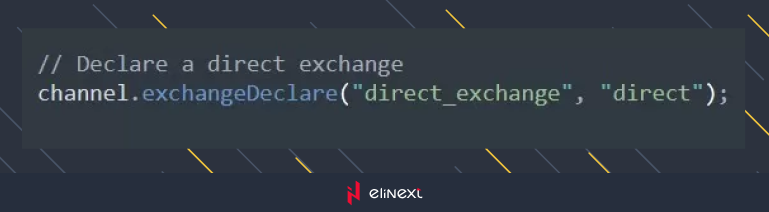

1. Exchanges:

Exchanges receive messages from producers and route them to one or more queues based on predefined rules. RabbitMQ supports several types of exchanges, including direct, fan-out, topic, and headers, each corresponding to different routing scenarios.

• Direct Exchange: A direct exchange routes messages to queues based on a direct match between the message routing key and the binding routing key. This exchange type is ideal for point-to-point communication scenarios

• Fanout Exchange: A fanout exchange routes messages to all bound queues indiscriminately. It broadcasts messages to all connected consumers, making it suitable for sending messages to many subscribers.
• Topic Exchange: Topic exchange routes messages to queues based on pattern matching with the message routing key. This allows more flexible routing based on wildcards in the routing key.
• Headers Exchange: Header exchange routes messages to queues based on header attributes rather than routing keys. It provides fine-grained control over message routing based on header values.

By choosing the appropriate exchange type, developers can tailor message routing to suit the specific requirements of their applications, enabling efficient and flexible communication between producers and consumers.

2. Queues:

Messages remain stored in queues until they are consumed by consumers. Messages are typically processed first in first out (FIFO) to ensure reliable delivery.

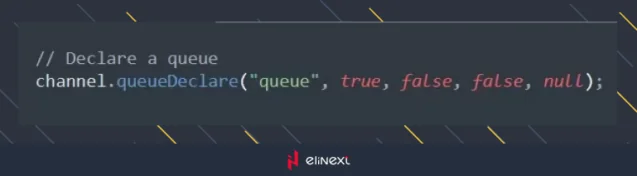

Here’s an explanation of the parameters used in the example code to declare a Queue:

• The name of the queue.
• Whether the queue should be durable (survive broker restart).
• Whether the queue should be exclusive (used by only one connection and deleted when that connection closes).
• Whether the queue should be auto-deleted when no longer in use.
• Additional arguments (null in this case).

By specifying these parameters when declaring a queue, developers can configure various properties of the queue to suit the specific requirements of their applications, such as reliability, exclusivity, and auto-deletion behavior.

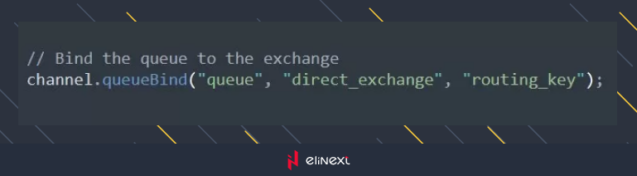

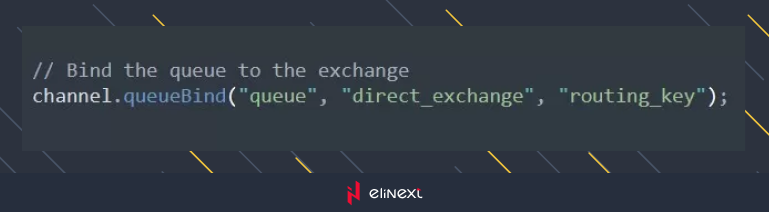

3. Bindings:

Bindings define the relationship between exchanges and queues, defining how messages should be routed based on routing keys. You can set up multiple bindings to route messages to different queues.

4. Message Acknowledgement:

RabbitMQ supports message acknowledgements, allowing consumers to confirm the successful processing of messages. This ensures message reliability and prevents message loss.

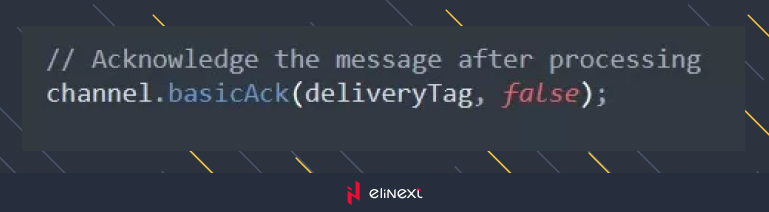

Let’s break down the parameters used in the BasicAck method, which is responsible for acknowledging the successful processing of messages in RabbitMQ:

• deliveryTag: The deliveryTag parameter is an identifier assigned by RabbitMQ to uniquely identify a delivered message. When a consumer receives a message from RabbitMQ, it includes a delivery tag. The consumer can then use this delivery tag to confirm the message after processing. Each message delivered by RabbitMQ has a unique delivery tag associated with it.
• multiple: The multiple parameter specifies whether to acknowledge a single message or multiple messages. If set to true, RabbitMQ will acknowledge all messages up to and including the message with the specified delivery tag. If set to false, RabbitMQ will only acknowledge the message with the specified delivery tag. In the example provided, the value is set to false, indicating that only the message with the specified delivery tag should be acknowledged.

By using the basicAck method with the appropriate parameters, consumers can confirm the successful processing of messages and ensure message reliability within the RabbitMQ system. This mechanism helps prevent message loss and ensures that messages are processed reliably and in the correct order.

Statistics and Insights:

Now let’s look at some ideas that highlight the importance of RabbitMQ in modern software development:

1. Acceptance Rate: According to a survey conducted by DZone, more than 50% of respondents reported using RabbitMQ as their preferred message broker in distributed systems architecture.
2. Performance: RabbitMQ boasts impressive performance metrics, with throughput exceeding 1 million messages per second in certain scenarios. This high throughput capability makes it suitable for handling large-scale messaging workloads.
3. Scalability: With support for clustering and horizontal scaling, RabbitMQ can easily scale to handle growing message volumes and ensure system reliability.
4. Reliability: RabbitMQ’s built-in features, such as message persistence and delivery confirmations, contribute to its reputation as a reliable messaging solution for mission-critical applications.

Conclusion

Integrating RabbitMQ into a Spring Boot application opens up a world of possibilities for building scalable and resilient distributed systems. By leveraging the power of asynchronous messaging, developers can decouple components, improve fault tolerance, and enhance overall system reliability.

With the seamless integration provided by Spring Boot and the flexibility of RabbitMQ, building robust messaging solutions has never been easier. Whether you’re building microservices, event-driven architectures, or real-time data pipelines, RabbitMQ and Spring Boot offer a winning combination for modern application development.
